Technopol EPS Cornices are single-piece decorative wall-to-ceiling mouldings cut from fire-retarded expanded polystyrene (Technopol "CORNICE" grade), supplied in standard 2400 mm lengths and bonded in place with cornice adhesive — a lightweight, paint-ready substitute for moulded plaster cornices, not an insulation or structural product.
| Property | Value | Standard |
|---|---|---|
| Product / build-up | Single-piece decorative EPS moulding for the wall-to-ceiling junction; arrives ready to prime and paint | — |
| Material / grade | Expanded polystyrene (EPS), Technopol "CORNICE"fire-retarded grade; application "Decorative Surface" | — |
| Nominal density (CORNICE grade) | 27 kg/m³ | — |
| Reaction to fire | Fire-retarded EPS grade; no Euroclass or SANS reaction-to-fire class established for the cornice product | — |
| Standard length | 2400 mm | — |
| Standard profile cross-section (25 codes P001C–P025C) | 26–135 (depth) × 38–180 (height) mm | — |
| Shadow Line profile cross-section (6 codes SL001–SL006) | 135–176 (depth) × 29–67 (height) mm | — |
| Fixing / installation | Bonded with cornice adhesive at the wall/ceiling junctionno mechanical fixing (5 kg bucket ≈ 50 m, 280 ml tube ≈ 5 m) | — |
Density 27 kg/m³ is the raw CORNICE sheeting-grade figure from the price list; no separate finished-moulding density datasheet exists. Fire: the only fire statement on file is the price-list header "All Products are Fire Retarded Grades". No Euroclass (EN 13501-1), SANS (10177/428) reaction-to-fire class, and no fire-resistance (REI) rating or fire test report exists for cornices — none should be claimed. Profile dimensions are the min–max envelope across the published codes; each code has a fixed section (format 2400 Long × Depth × Height). Custom profiles and mitre boxes are available on request. Cornices are marketed as decorative trim, not insulation — thermal conductivity (λ), R/U-value and compressive strength are not published and are not applicable to the marketed use.
Values from Technopol technical documentation. Confirm the exact figures for your specification with Technopol.
| Property | Value | Standard |
|---|---|---|
| Nominal density (CORNICE grade) | 27 kg/m³ | |
| Standard length | 2400 mm | |
| Profile cross-section (standard codes) | 26–135 × 38–180 mm |
Every test report and certificate behind these figures is on the test-report register.

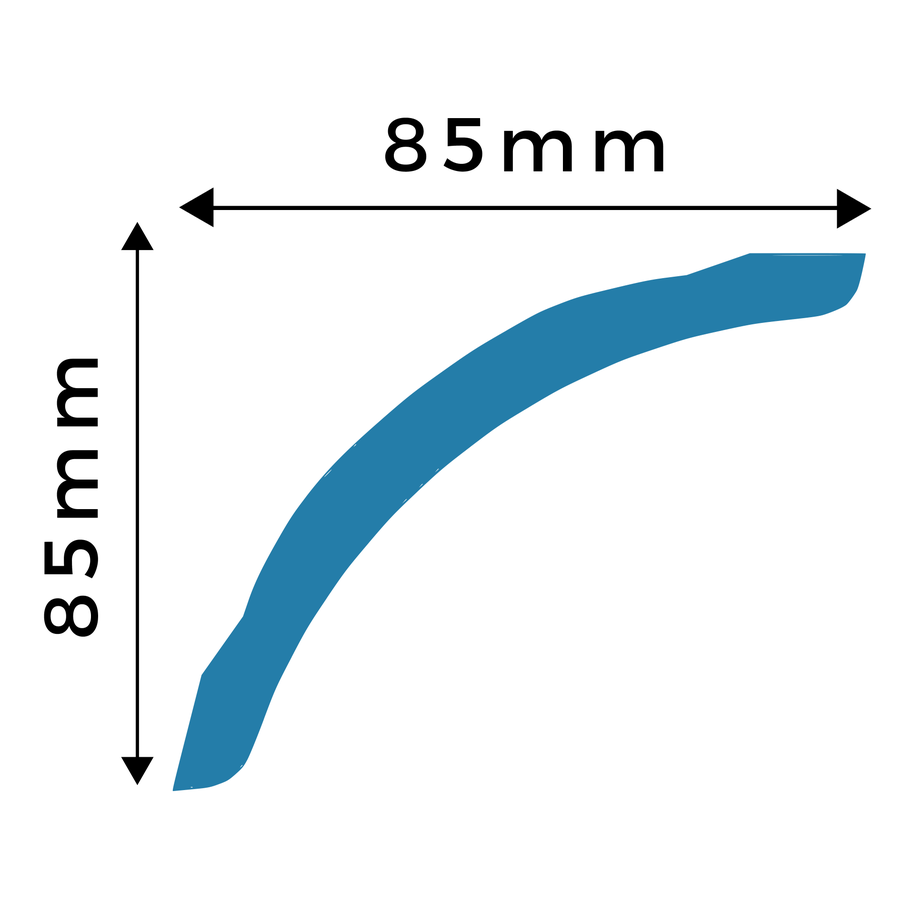

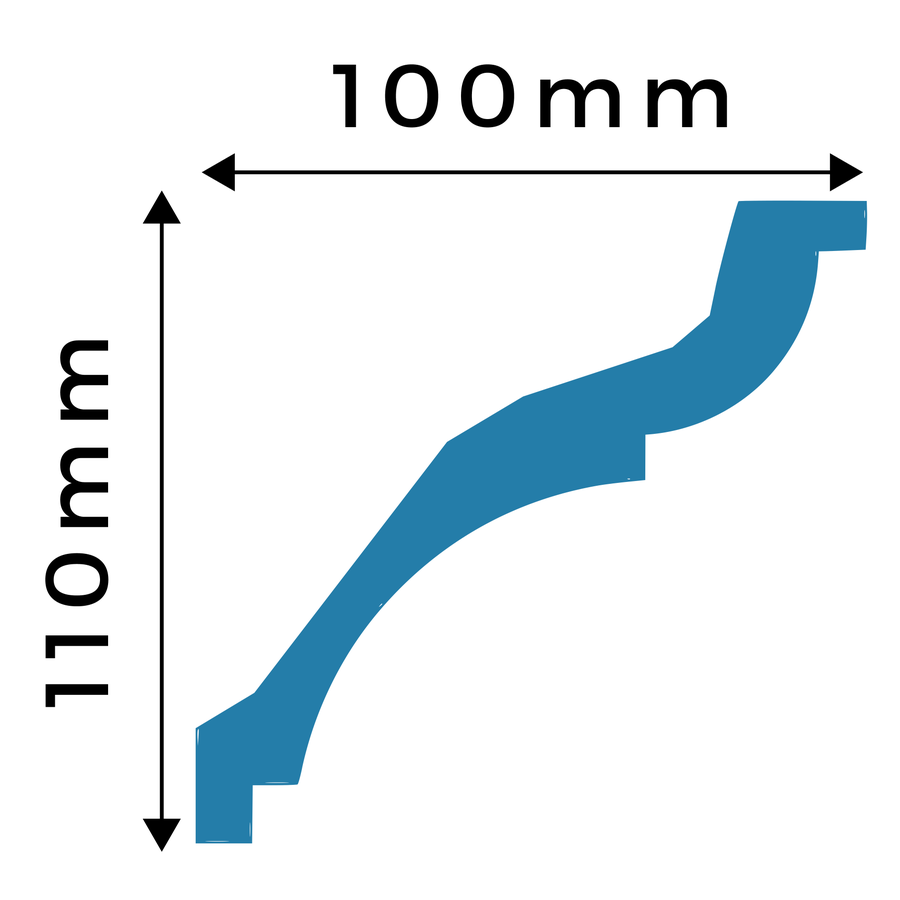

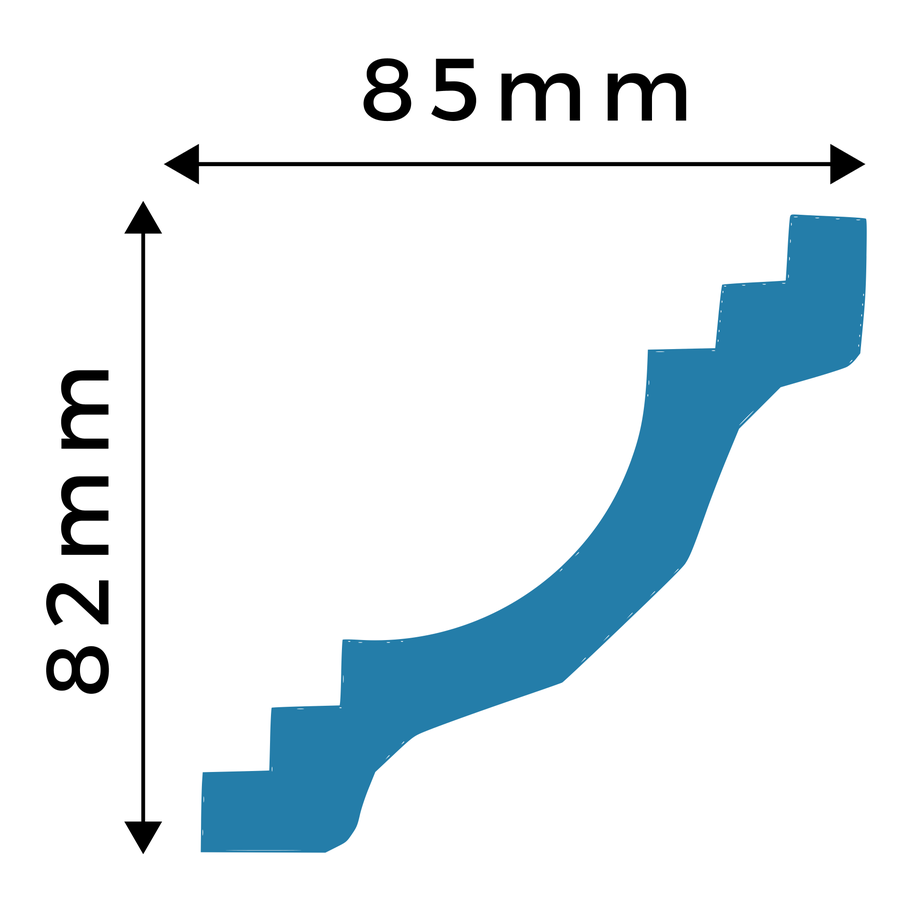

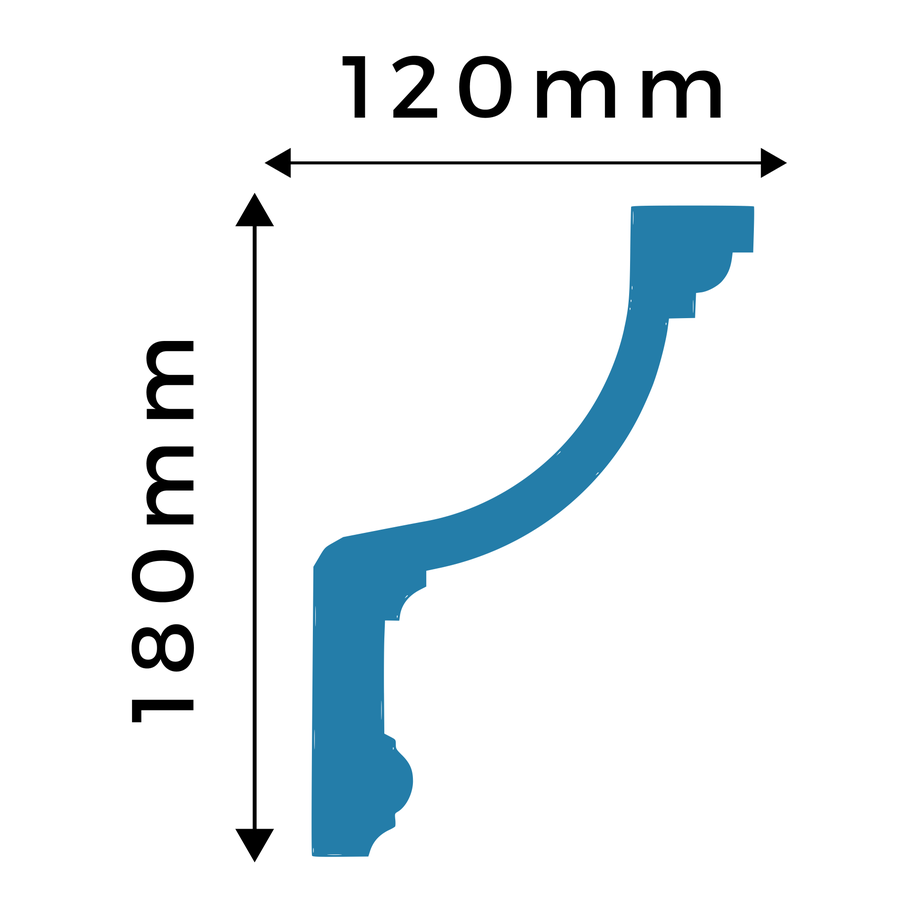

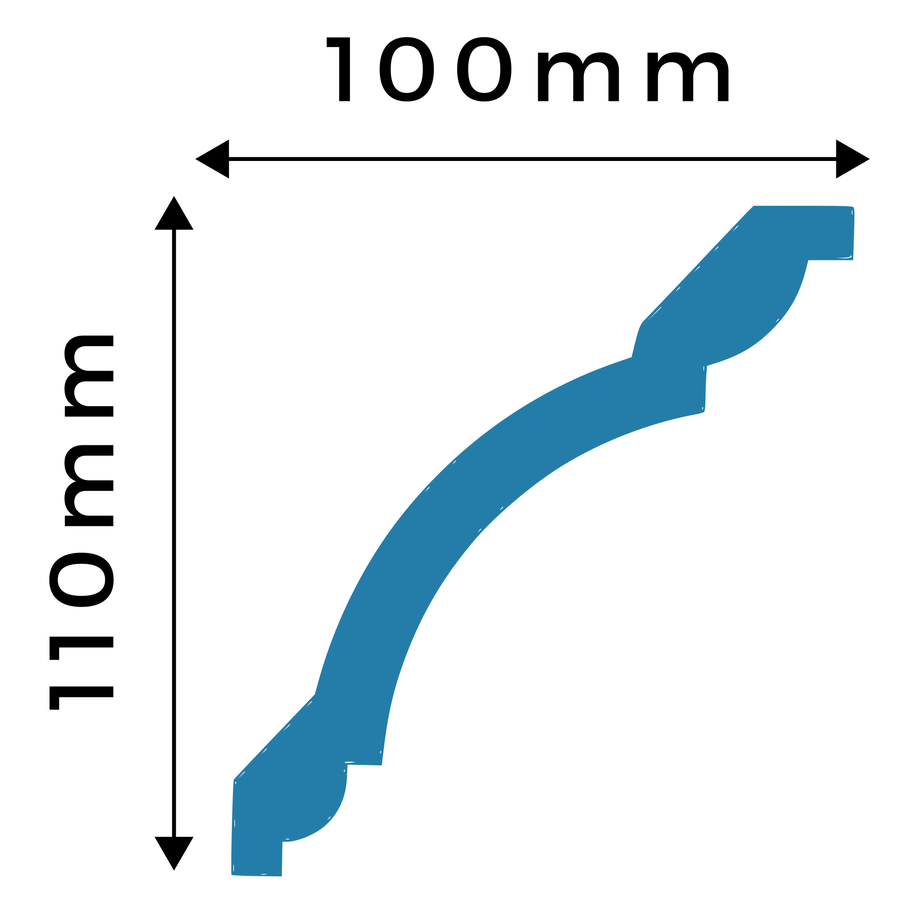

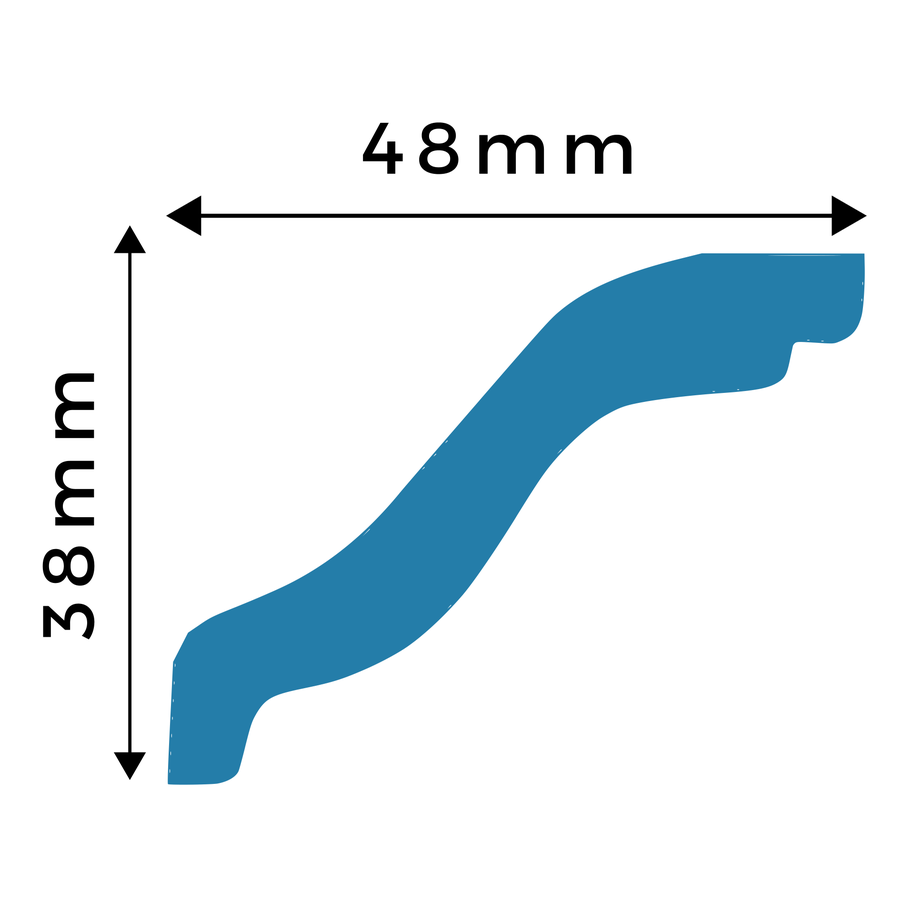

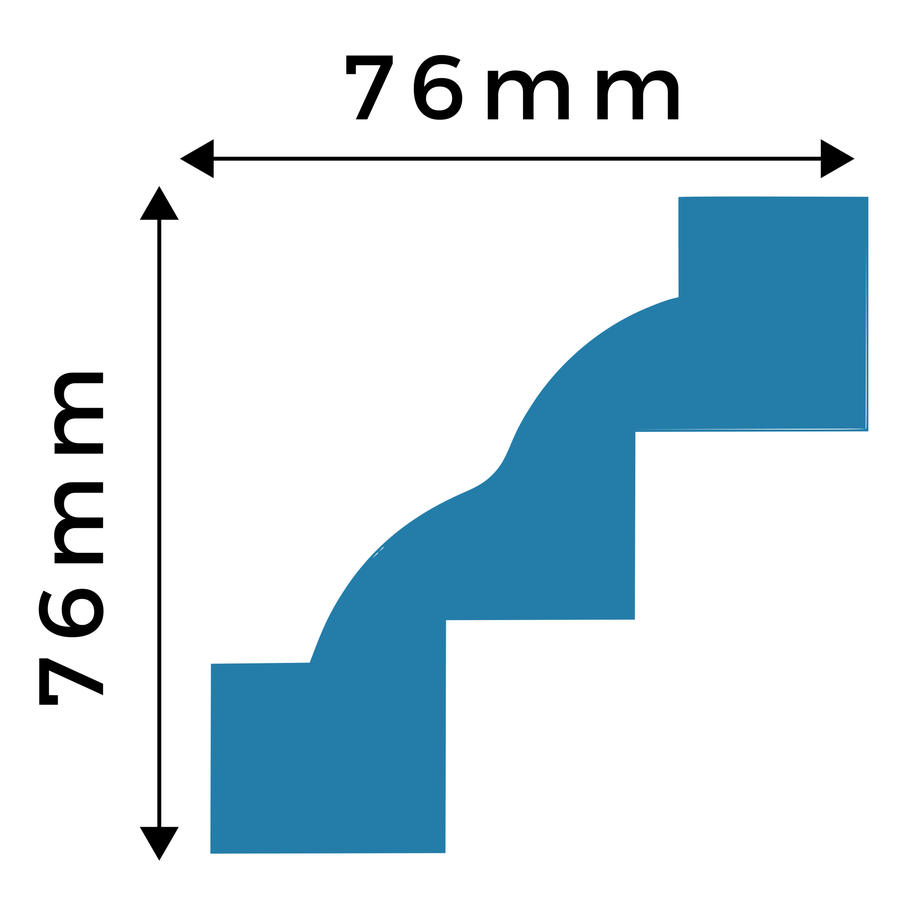

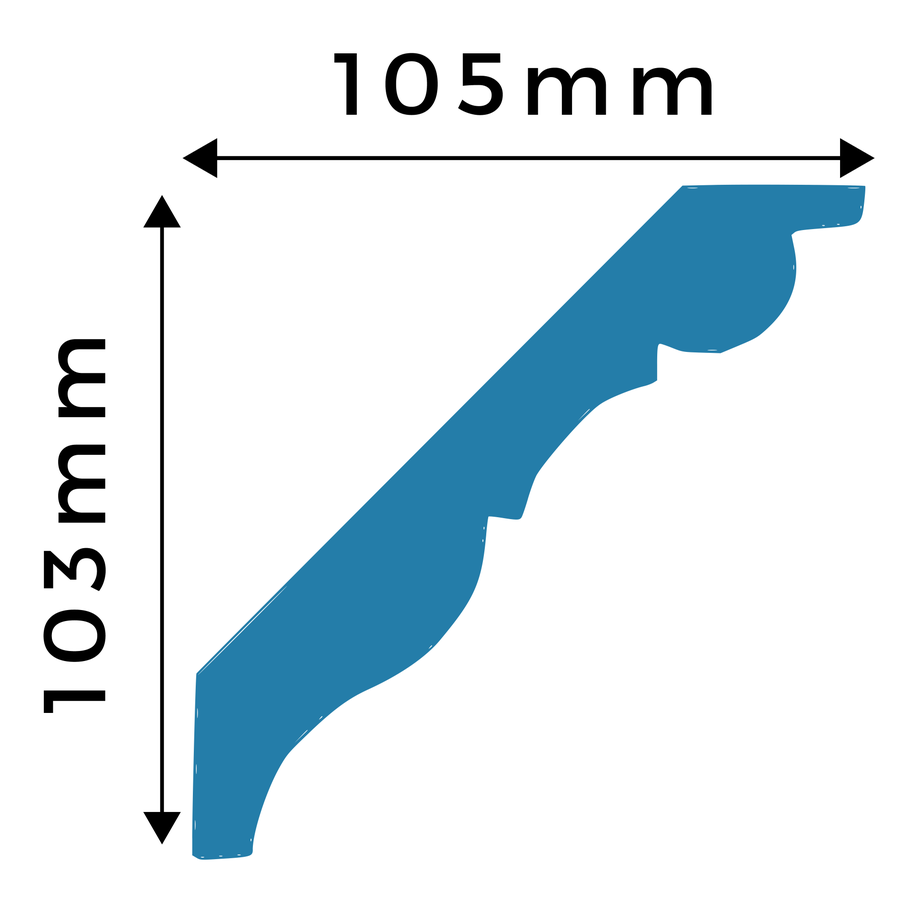

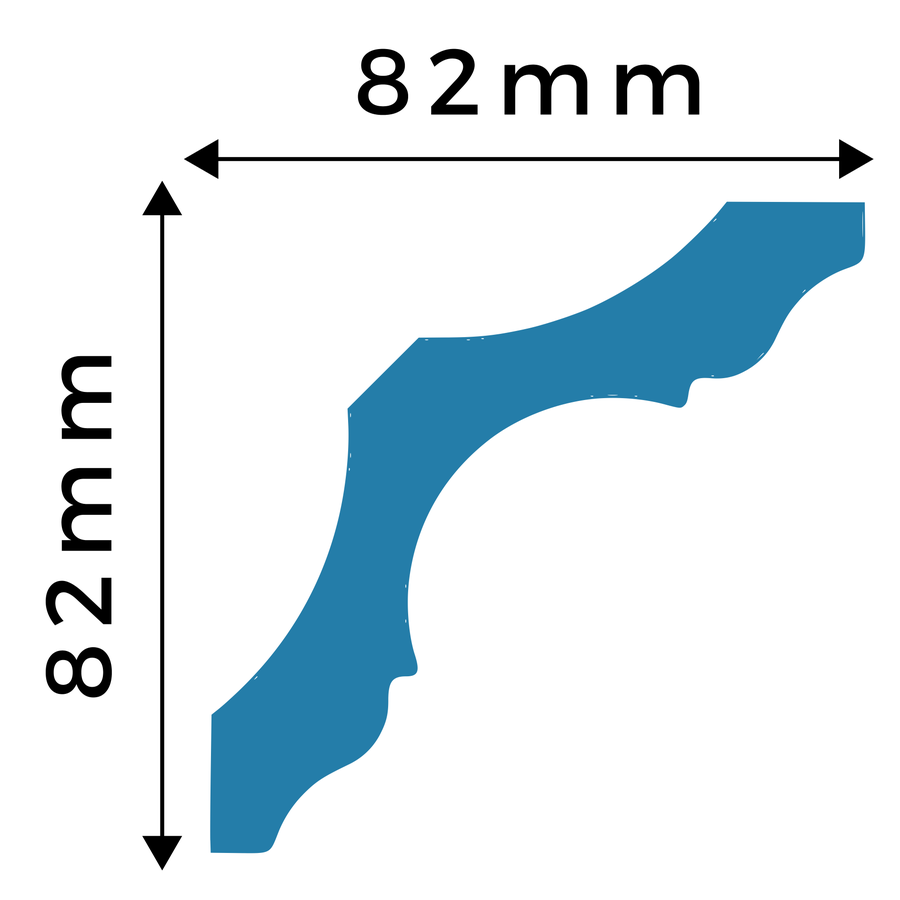

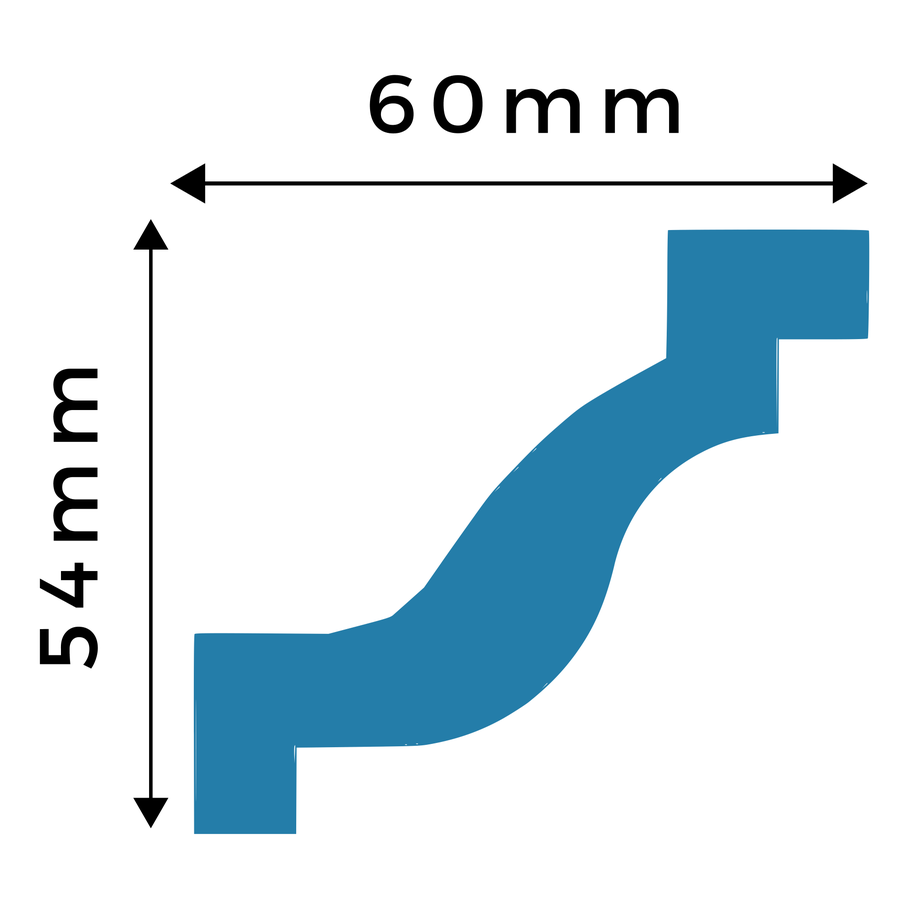

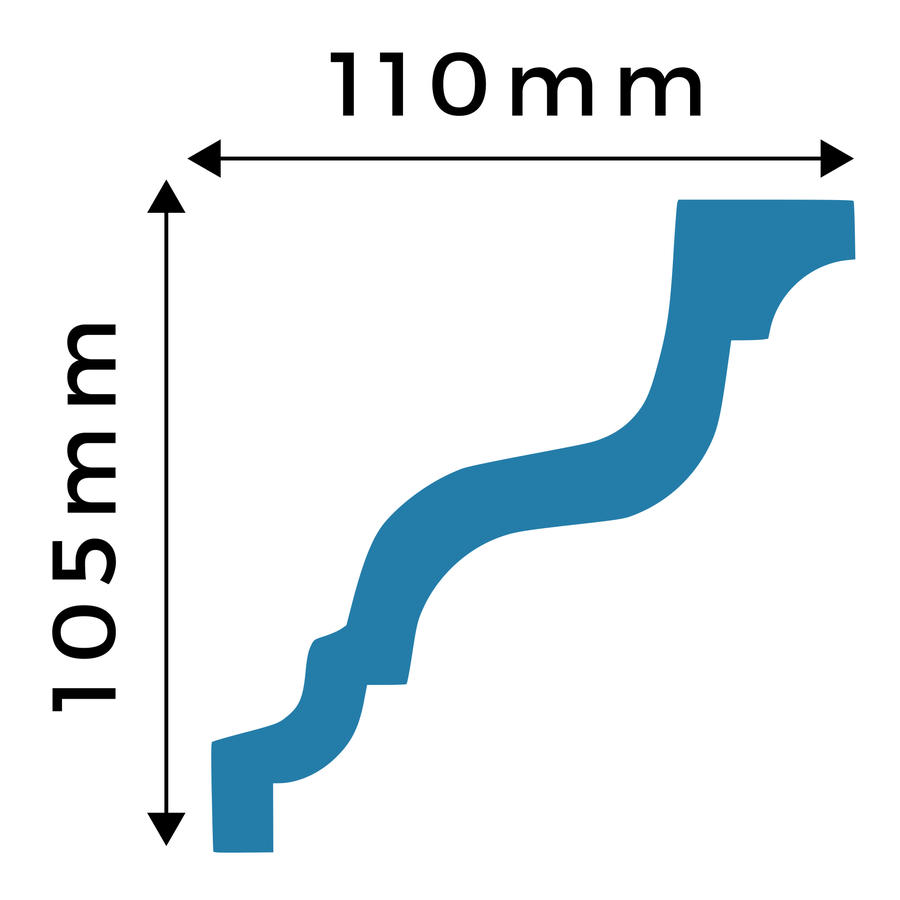

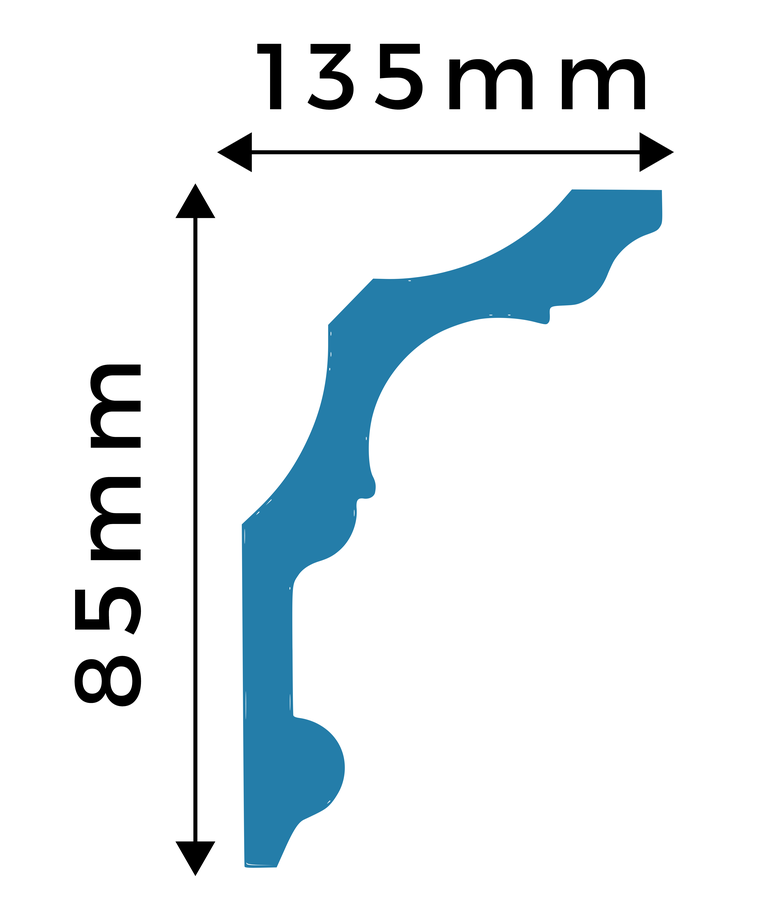

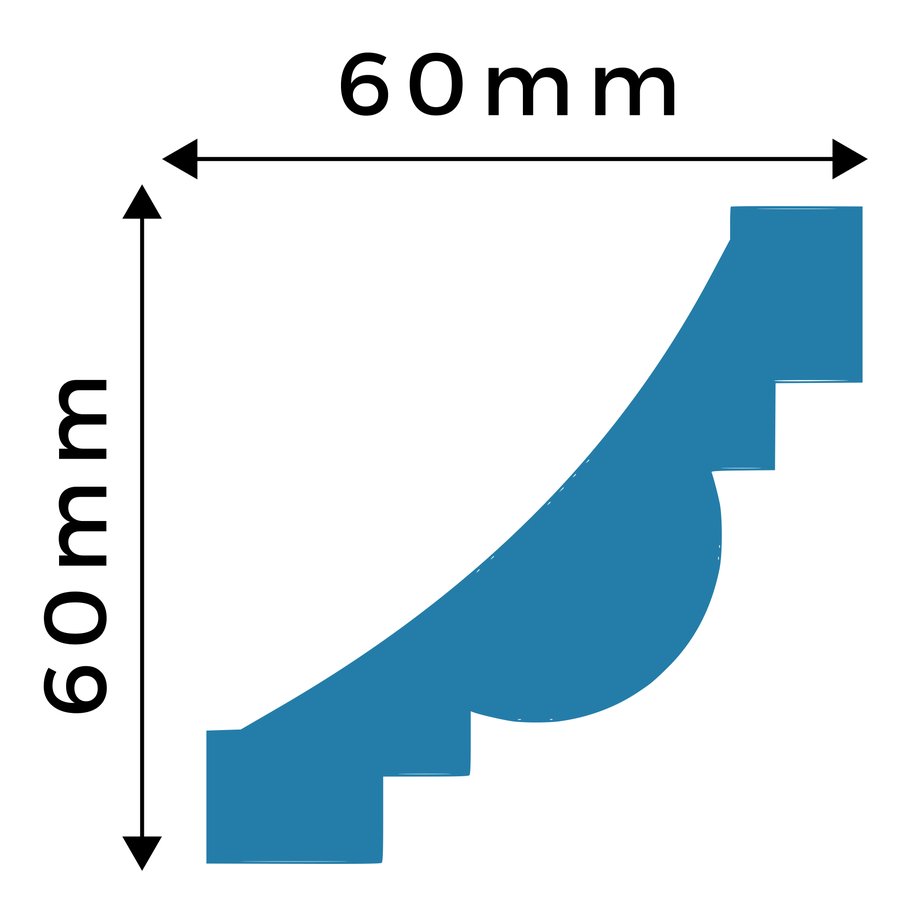

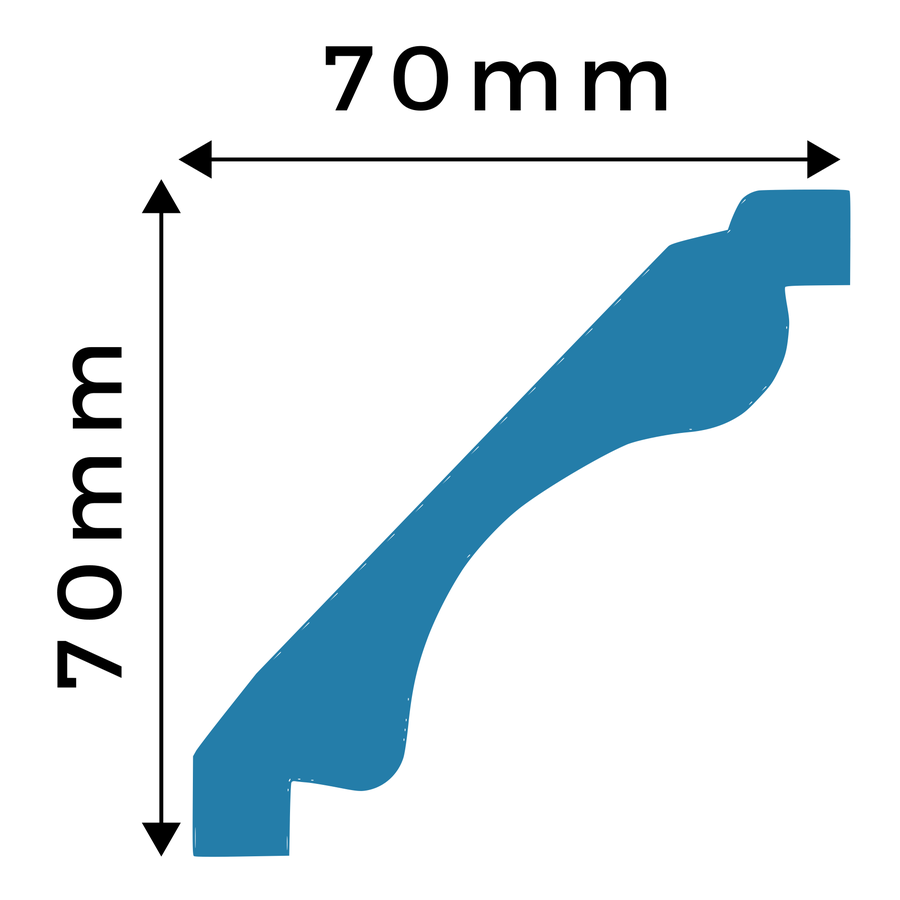

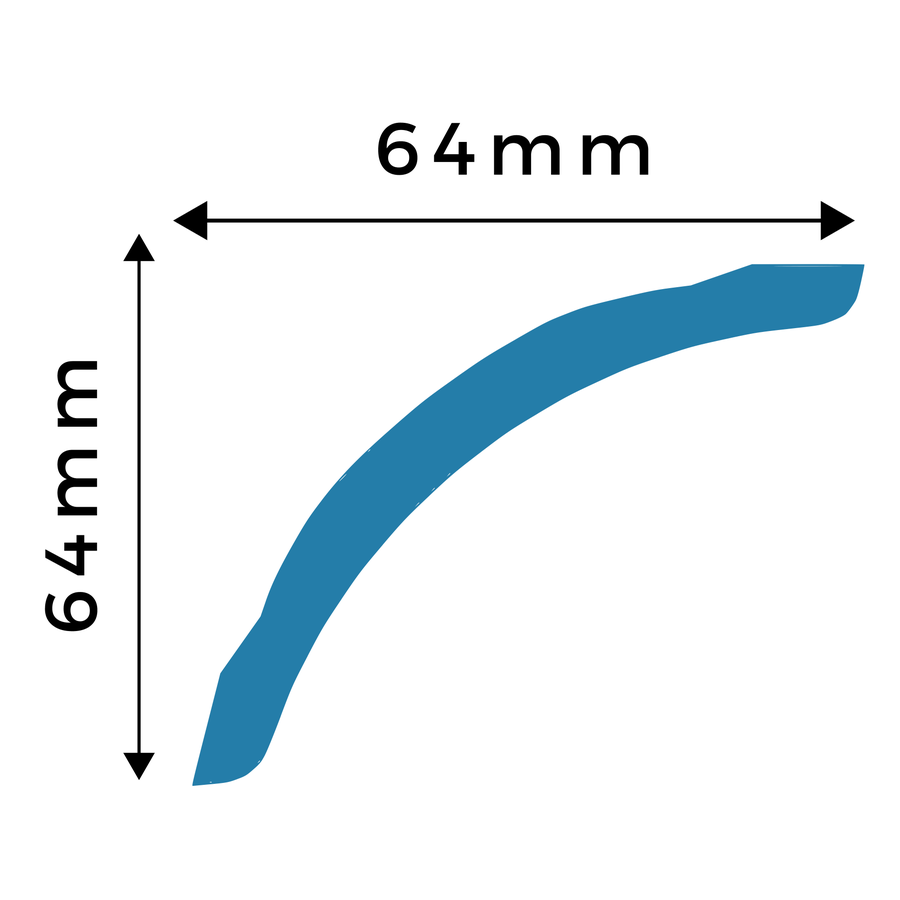

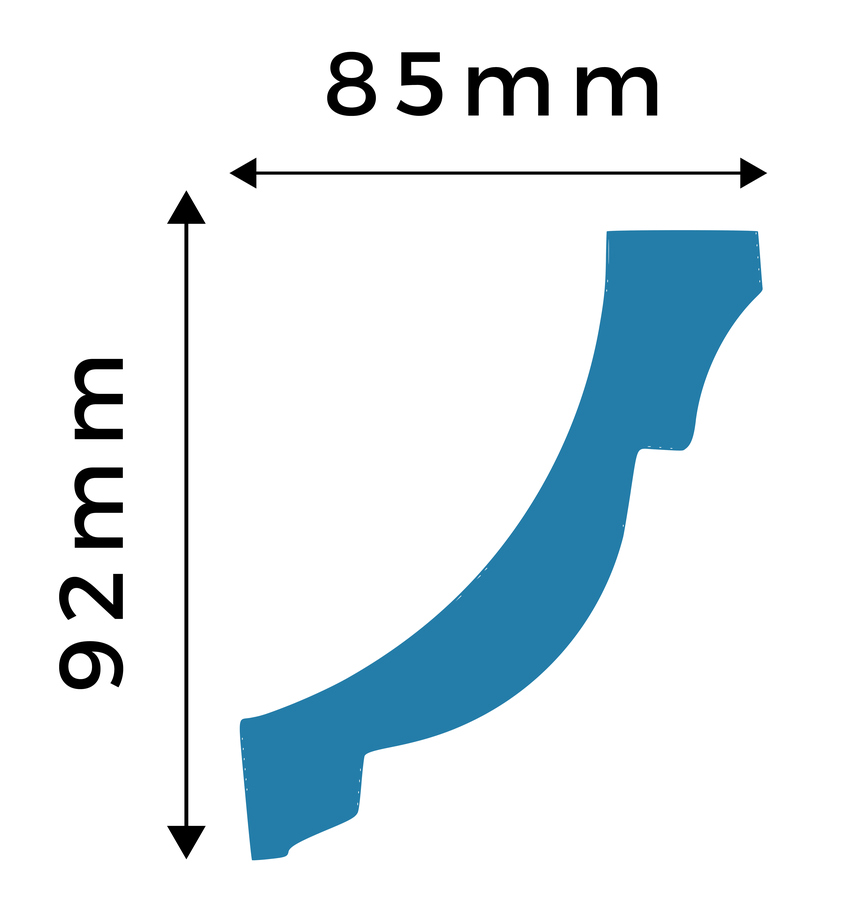

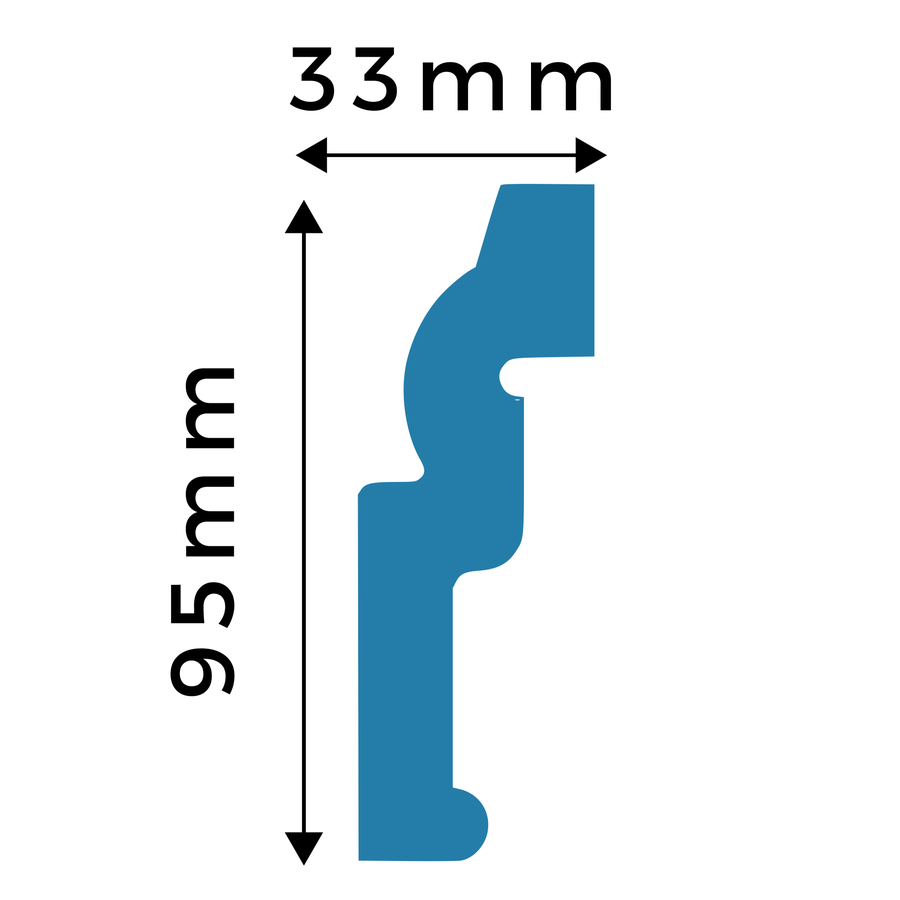

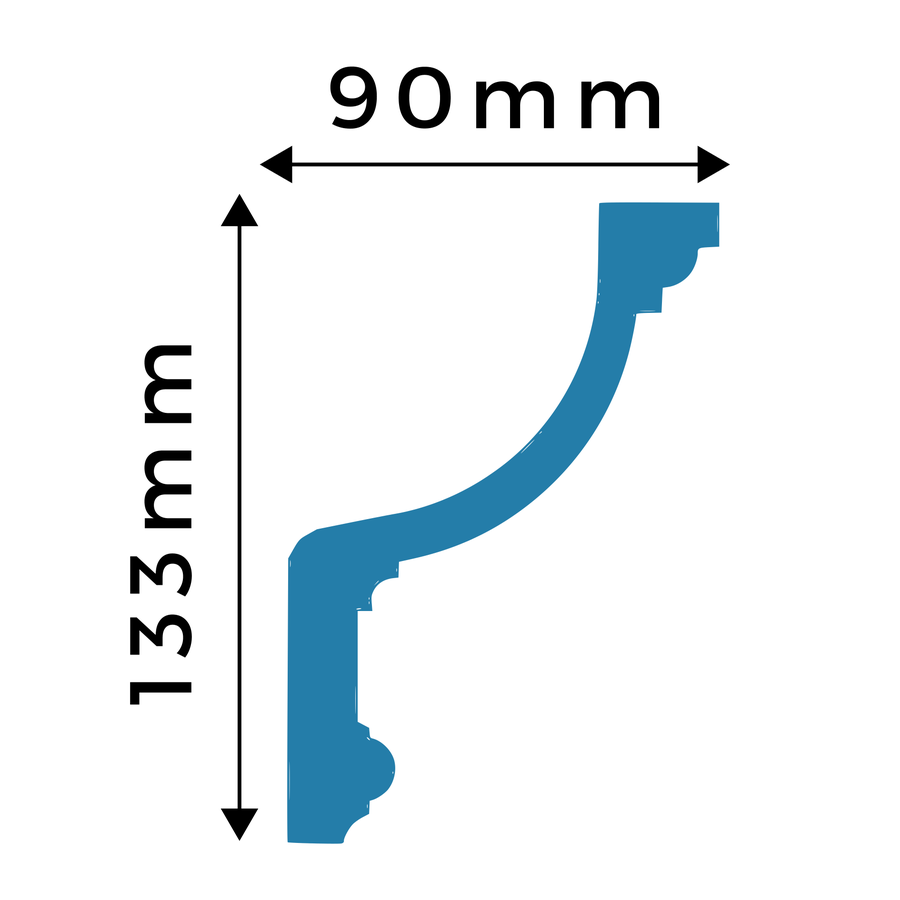

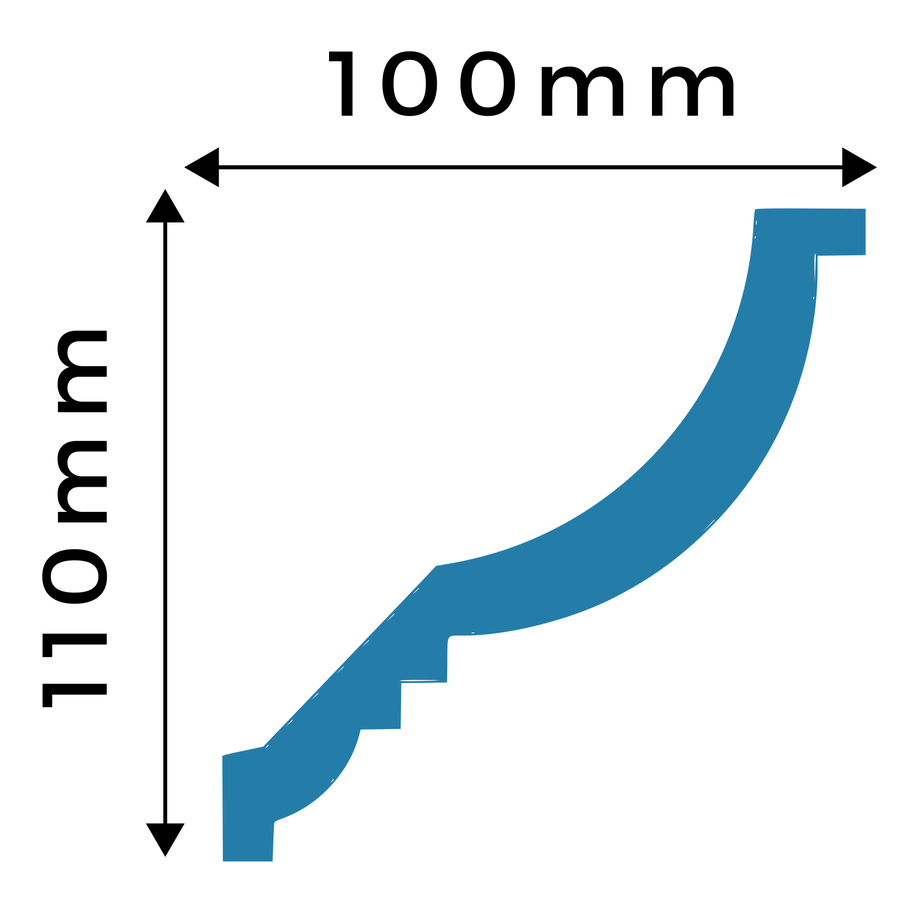

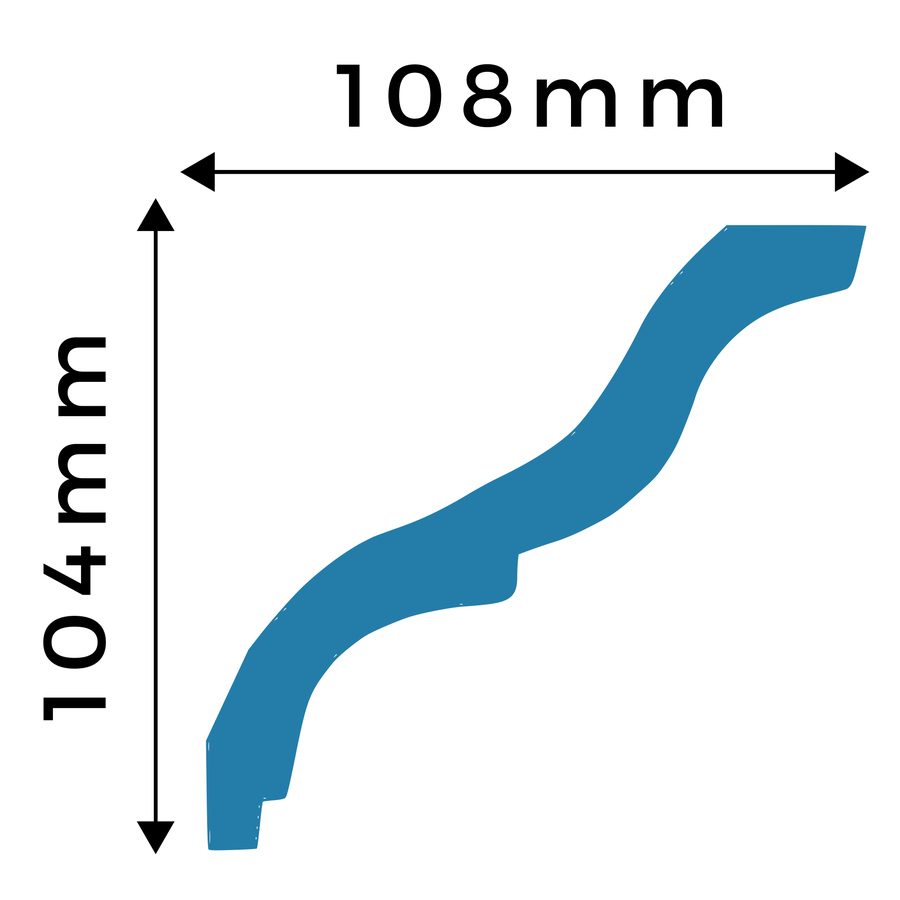

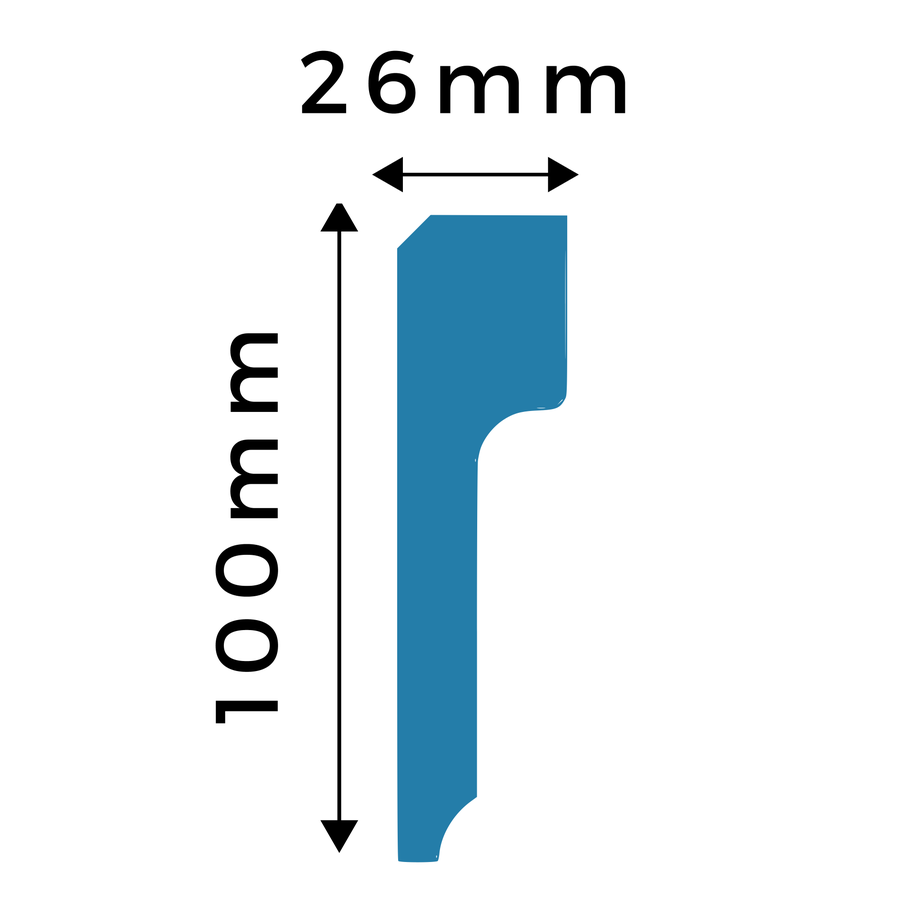

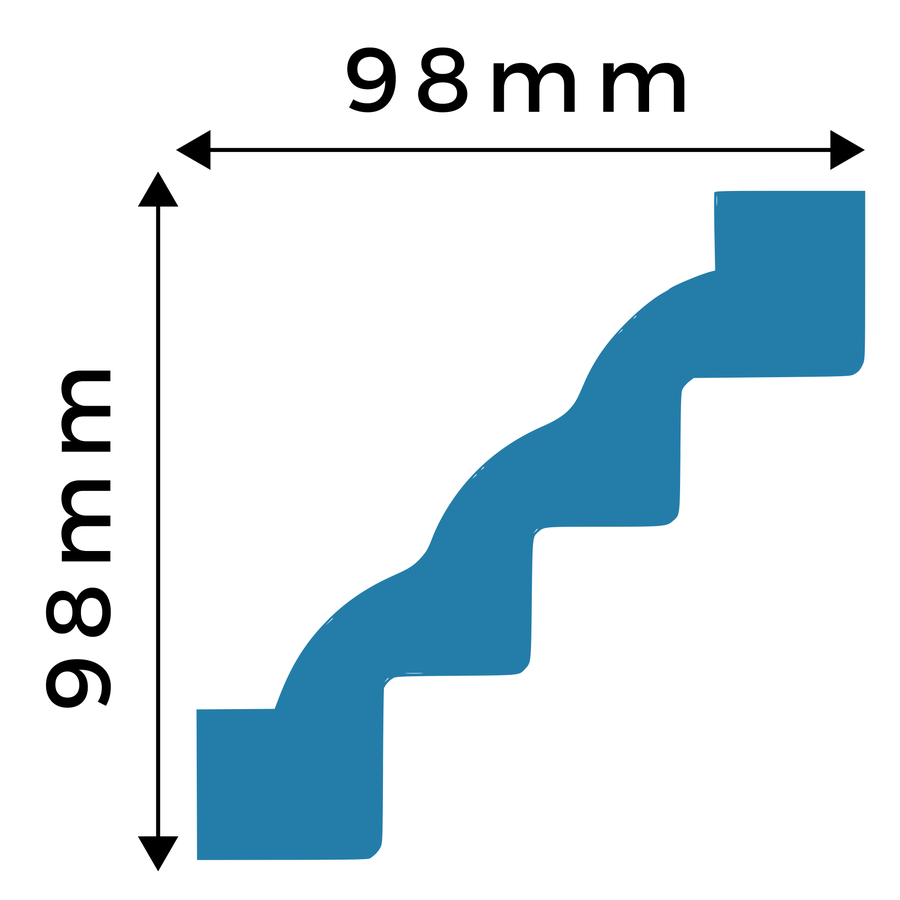

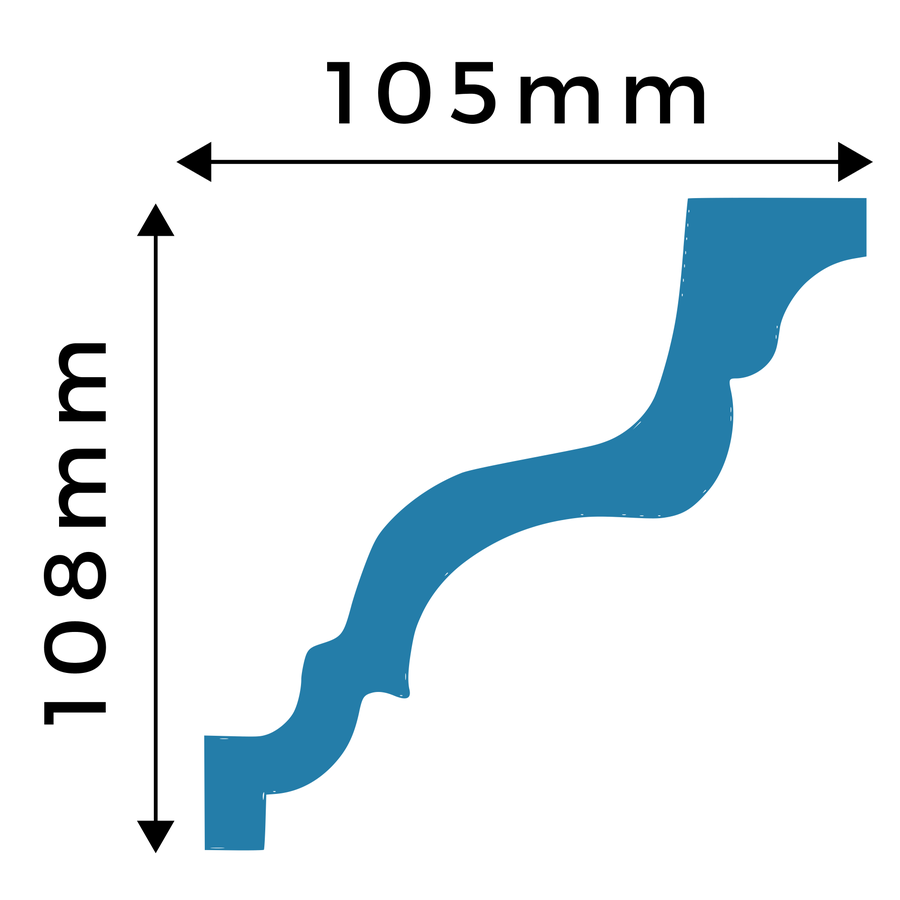

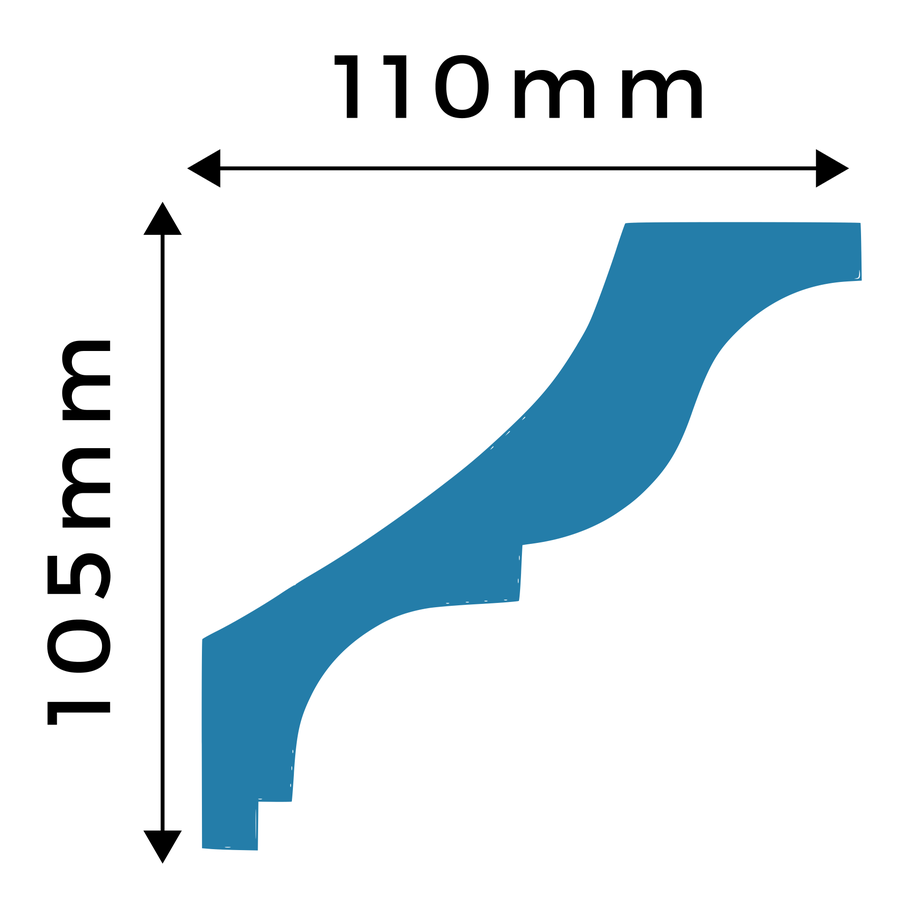

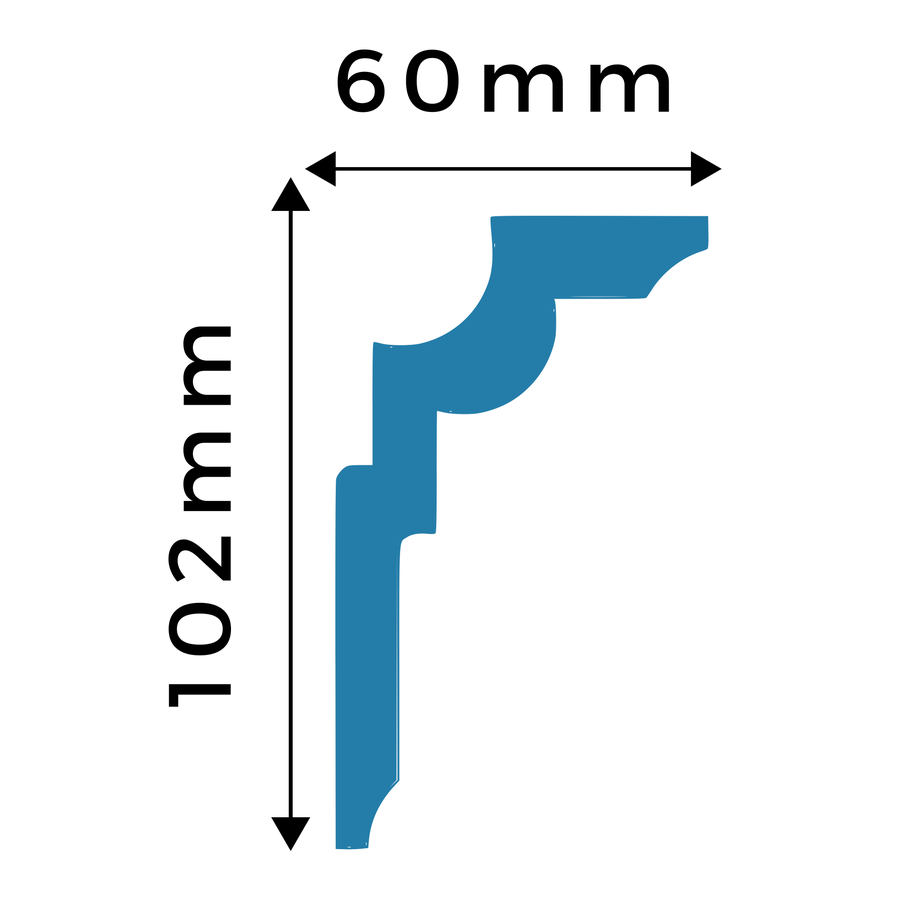

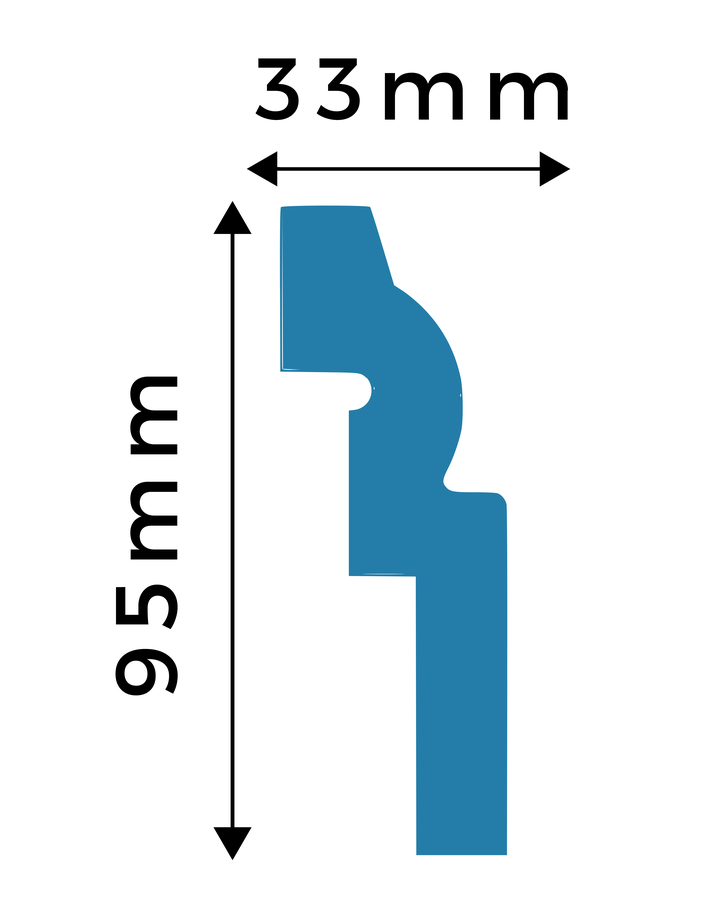

Quote the code when you order. Each drawing is the section through the moulding, with its depth and height. Pack quantities differ per profile.
Twenty-six mouldings, all supplied in 2400 mm lengths.

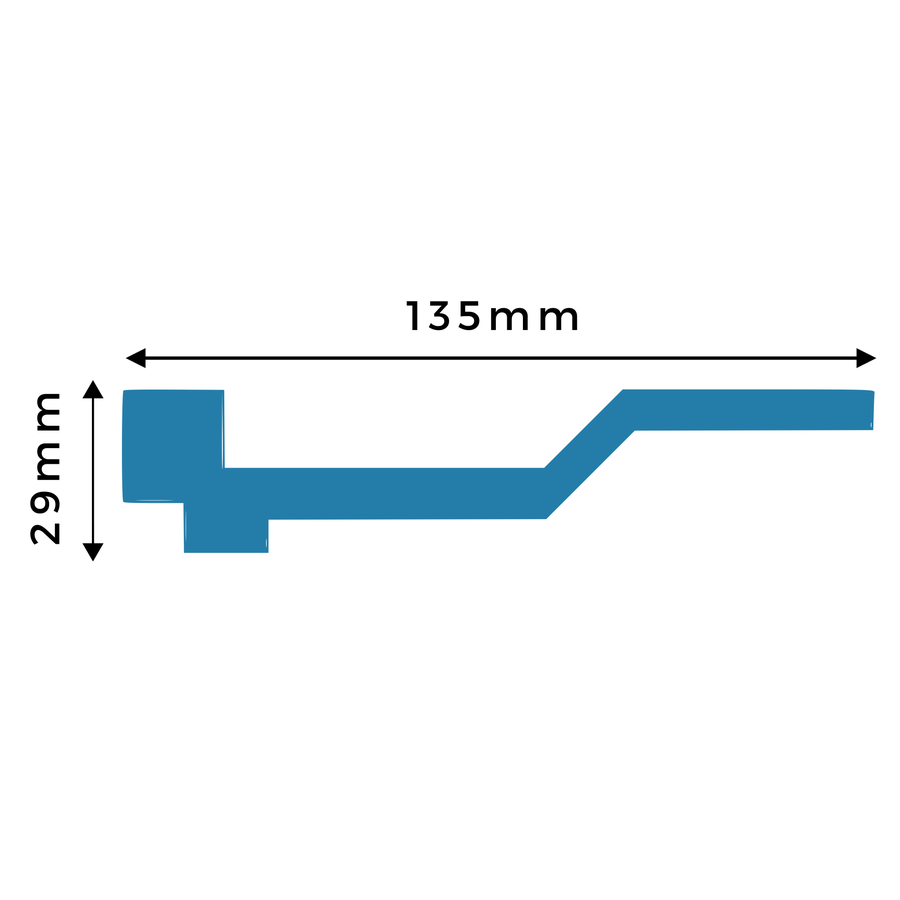

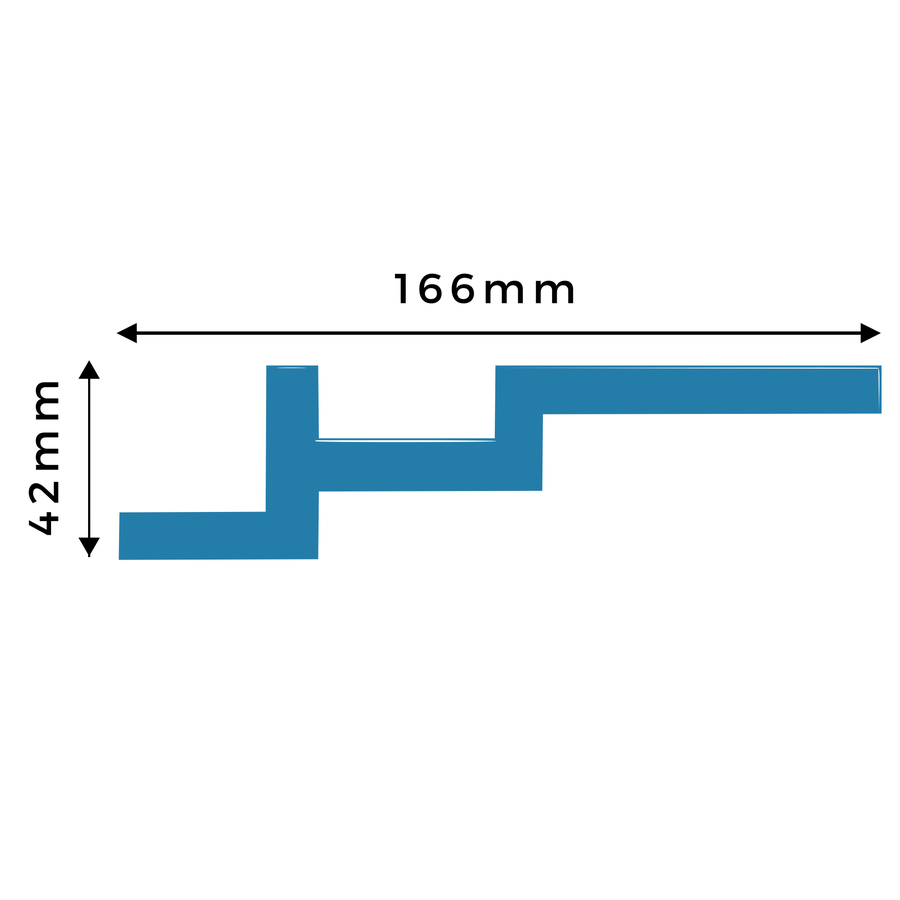

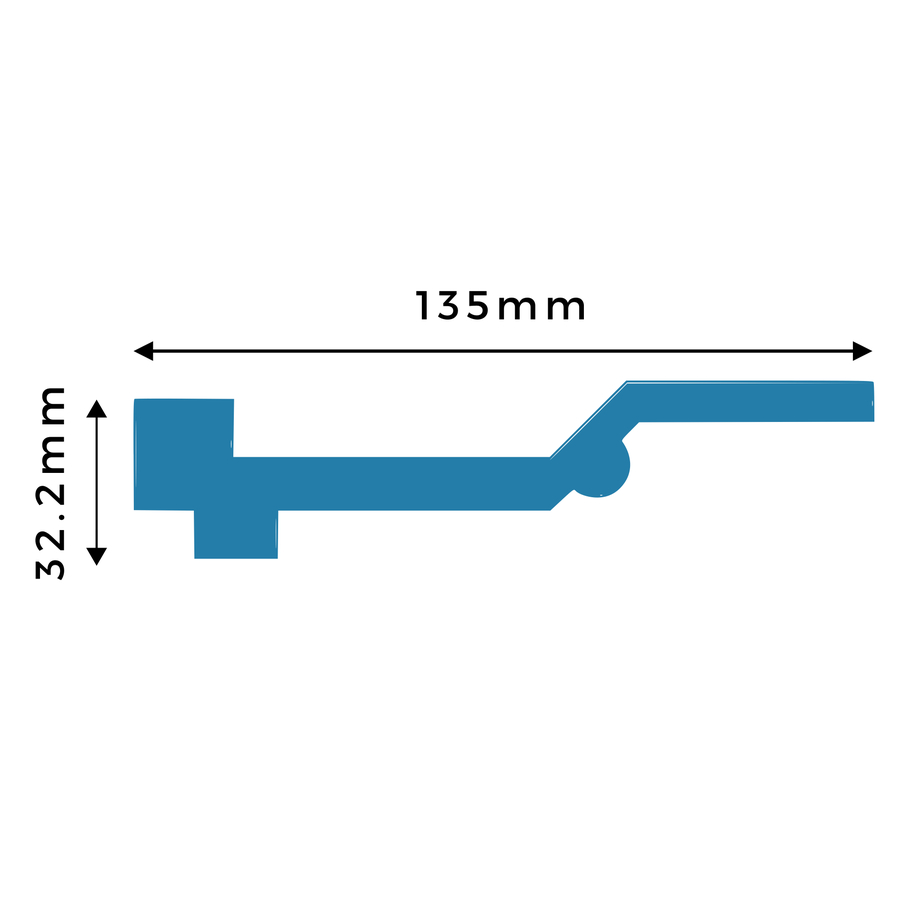

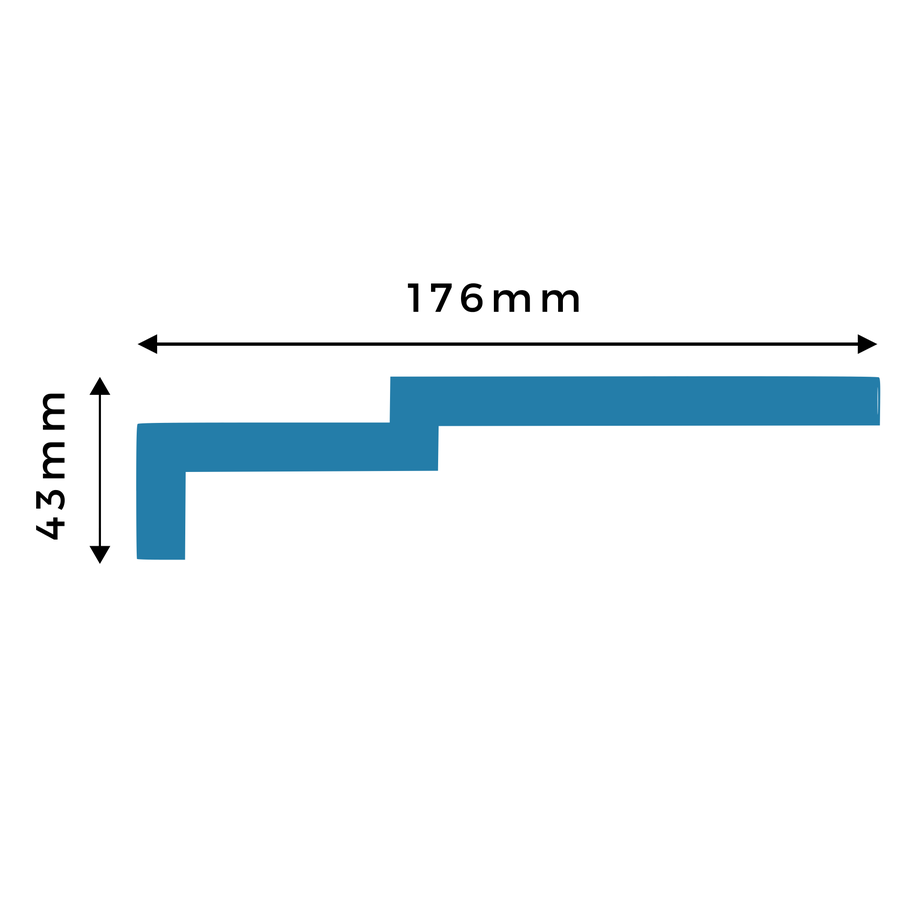

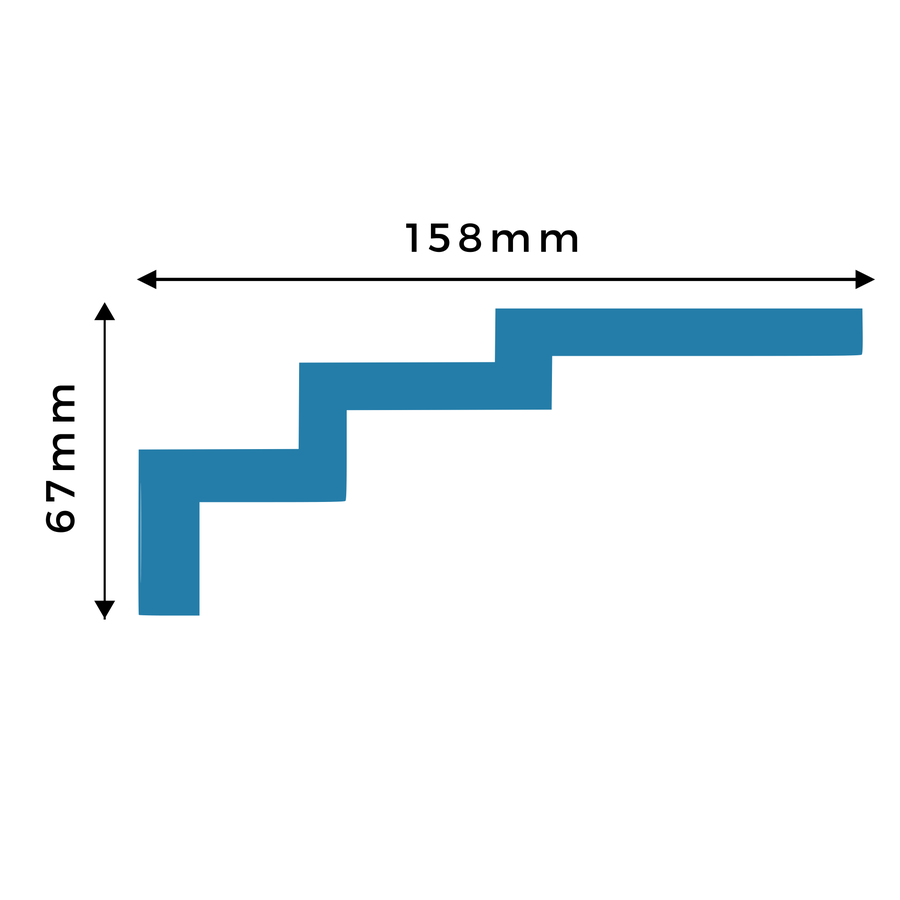

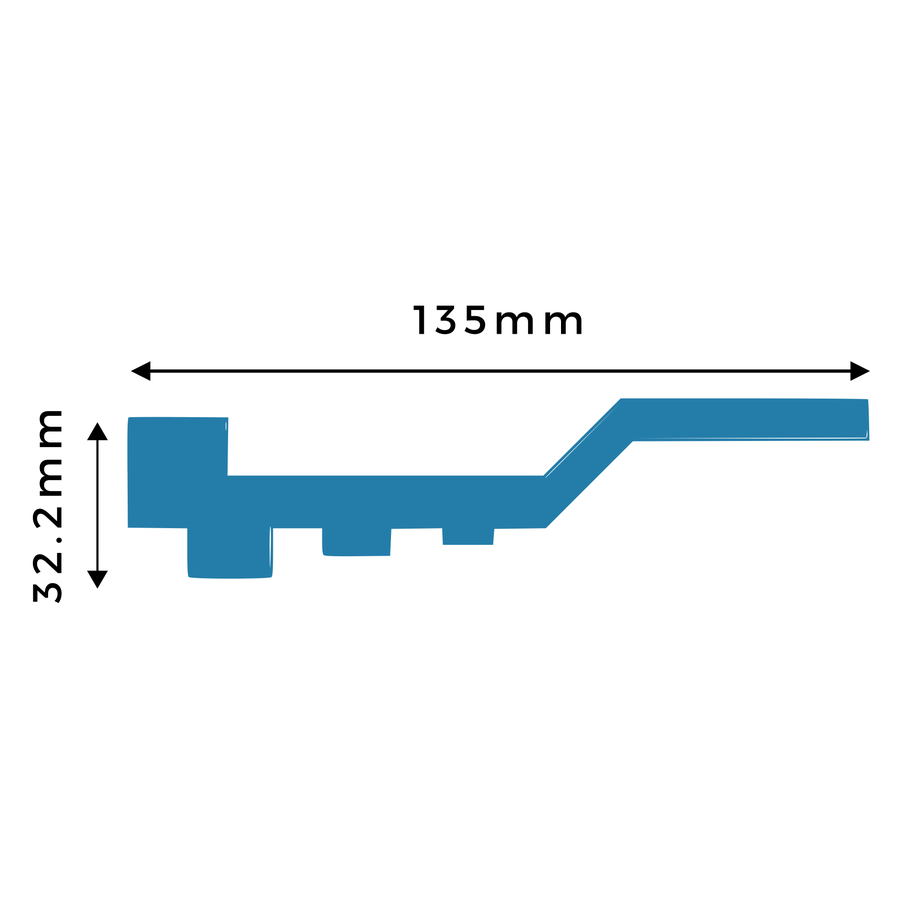

Fitted horizontally to carry concealed LED lighting, or vertically as a bulkhead trim. Also 2400 mm lengths.
